Transactional correspondence such as invoices, reminders or official notifications are processed efficiently and productively by the various configurations of the Müller 6100 and 6300 web cutting systems. All common formats from 4 to 16 inches are possible – no matter whether the documents come from a roll or a fanfold stack, whether pinfeed or pinless.

Single or double cuts trim the gross format to the desired net format at up to 18,000 cycles per hour. The system can handle 100 different cutting patterns thanks to sufficient memory capacity. These can be conveniently stored in the system and called up at any time via the display.

The wide range of possible combinations allows the system to be configured according to the desired requirements. In addition to cutting, the Müller 6100 and 6300 enable perforation, code reading and merging of specific groups.

At the end of the process, the paper is placed: as a manual stack, stack with or without group separation or as a single sheet in shingled sequence.

Configuration flexibility • customer-specific system design
Flexible processing • pinfeed or pinless, 1-up to 3-up
Ease-of-Use • central display, short set-up times
Printing sequence • slalom or parallel printing

Cutting fanfold paper from the stack in 1-up to single sheets is the classic job for the stand-alone cutting system from Müller. This can be done with a single or double cut (cutting out the fold edge). Up to 500 sheets can then be placed on the receiving tray. The system is available both as pure pinfeed and as a combination pinfeed/pinless.

The Müller 6100, combined with a drop stacker, allows the cut documents to be accurately placed on a stack. Whether 1-up or 2-up, the stacking height can be up to 12 cm, depending on the requirements. The optional delivery belt ensures automatic removal of the stack.

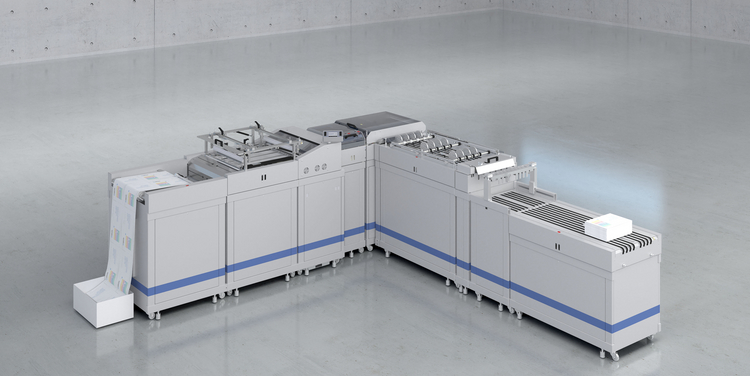

With the Müller 6300 cutting system, documents in parallel printing can be processed quickly and reliably. Depending on the desired requirements, the cut paper is then accurately placed on a stack. With an additional delivery belt it is possible to deposit up to six stacks.

With the Müller 6300, 2-up paper web in slalom printing – whether from a stack, from a roll or online from the printer – can be easily and quickly processed and merged into a stack. Since the production is almost continuous, the document throughput increases significantly.

Step 1: Input – Which paper should be processed?
The Müller 6100 and 6300 can process both pinfeed and pinless paper.

Step 2: Input – How is the paper fed?
The paper can be fed into the cutter in various ways – from the fanfold stack, from the roll or online from the printer. Depending on the configuration and customer requirements, the appropriate input device can be selected.

Step 3: Function – How should the paper be processed?
Depending on the customer requirements, the cutting system can be configured individually. The main function of each cutting system is to trim the document to the desired final format. In addition, the system can be equipped with further functions. Whether this is the perforation or merging of documents or the offset in groups via counter or code control.

Step 4: Output – How should the paper output look like?
After the paper has been processed, it can be laid down as a stack with or without group separation.
